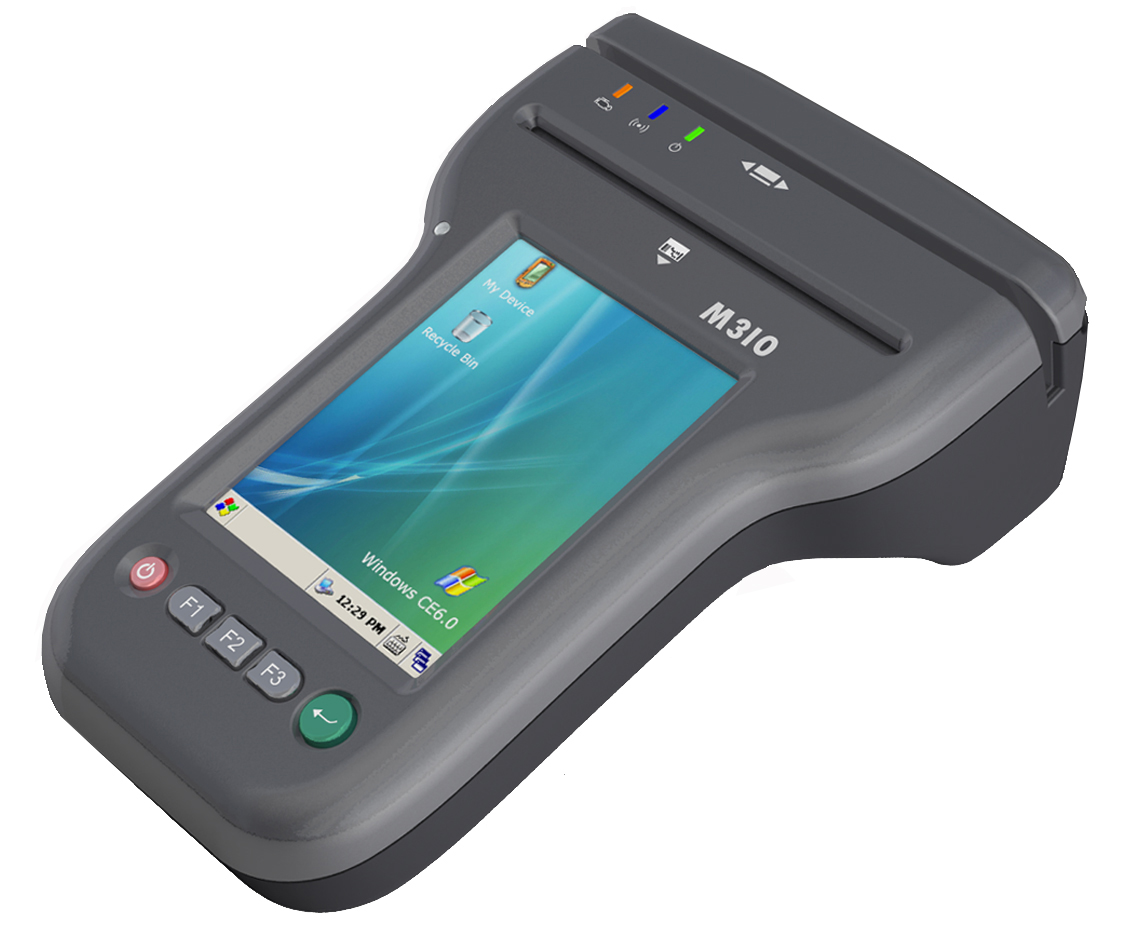

Barcode Reader
Readable Codes:
Sensor Type:
Illumination:
Scanning Area: |
|
PDF 417 linear barcodes (Code 39, Code 128)
Linear CMOS array
Red bar LEDs
36 mm x 80 mm |
|
|
|
|
Magnetic Reader
Number of Tracks:
Formats:
Read Direction: |
|
3 track head
ANSI, ISO, CDL, AAMVA standard
Bi-directional read capability |
|
|
|
|

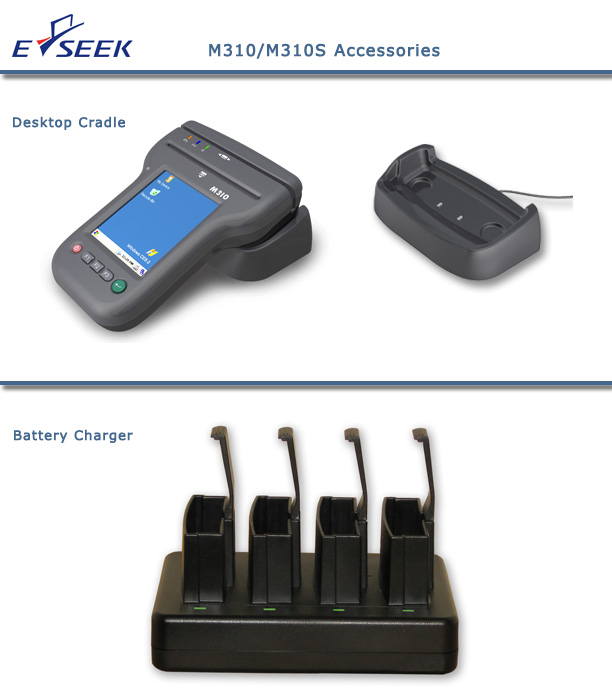

Optional & Accessory Items
Up to 16GB optional microSD Memory
Extra Battery
Desktop type Cradle
AC-DC Power Supply (15V 1000mA)
Hand Strap |
|
(SDHC) |
|
|
|
|
|
Performance Characteristics |
| Card Operating Mode: |
|
Display: |
| Operation: |
| Memory: |
| CPU: |
| Operating System: |
| |
| |
| Indicators: |
|
| Communication Ports: |
| Input
Method: |
| Main Battery: |
| Battery/Power Chargers: |
|
|
|
| Manual Insertion of ID Card , Mag Stripe
Swipe action |
| TFT 3.5” LCD display with
240x320 pixels, 260K colors, high bright LED
backlight and touch screen |
| Hand-held or stand-alone |
| 64 MB RAM & 128 MB Flash
& Micro SD Slot 16GB |
| Marvell PAX300 Application Processor |
| Microsoft Windows CE 6.0 Embedded |
A Beeper from Scan Engine
A Speaker
A dual Color LED for scanning (from Scan
Engine )
A dual Color LED for
charger/power status.
A dual Color LED for
Wi-Fi & Bluetooth |
| USB
Device |
| Stylus Virtual Keyboard/
Hot Keys (A power button, 3 function keys & an
enter |
| Rechargeable battery (Lithium-ion 7.4 V
1800 mAH) |
| AC-DC Power adapter |
|
|
|
|
|
Physical Characteristic
Card size:
Dimensions:
Weight: |
|
ISO Standard Size -- 53.98 mm x 85.73 mm
2.2” Height ´ 4.5” Width ´ 6.5” Length (56 x 114 x
164mm)
1.0 lb (with battery) |
|
|
|
|
User Environment
Operating Temperature:
Storage:
Humidity:
Regulatory: |
|
32o to 104o F (0o to 40o C)
-40o to 140o F (-40o to 60o C)
10% to 90% (non-condensing)
FCC and CE recognized components |
